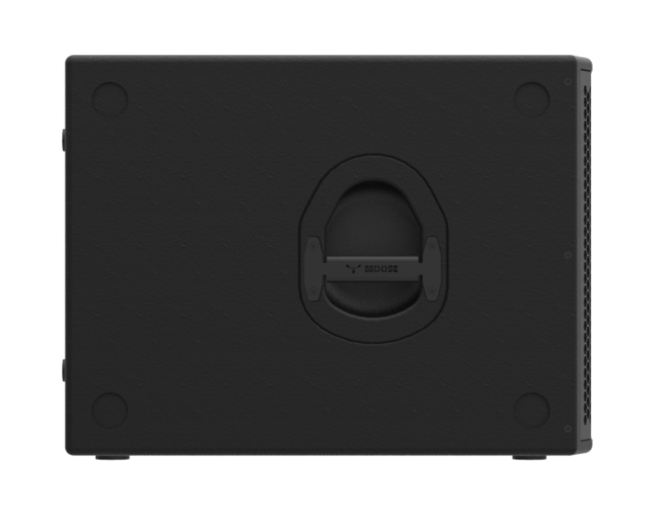

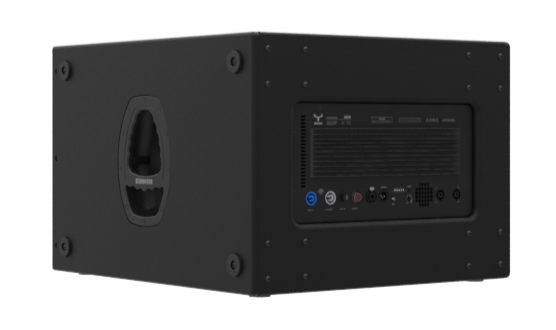

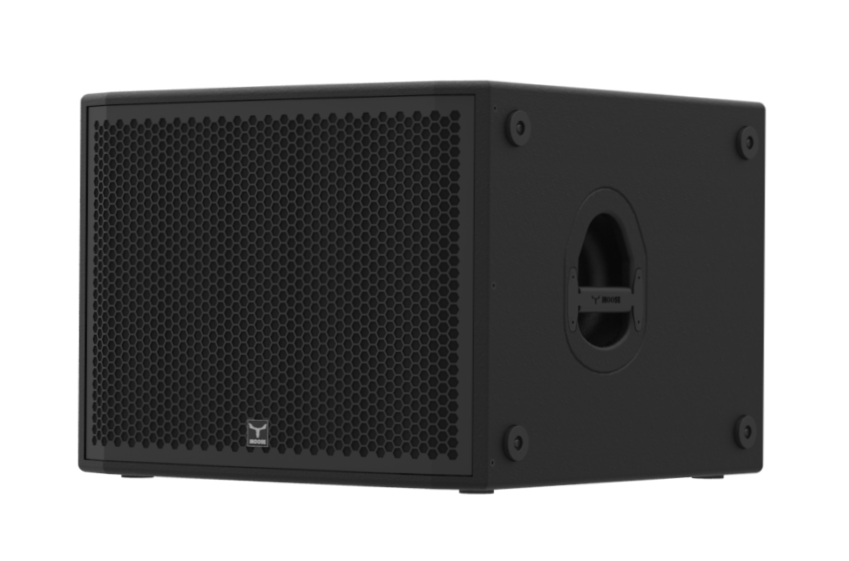

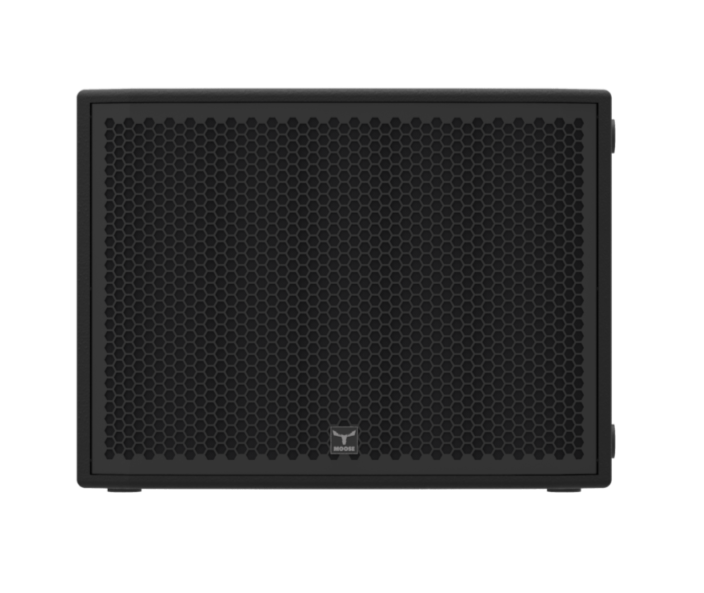

Moose G15A Active Subwoofer 15"

Bass reflex ACTIVE subwoofer

1x 15" (4in VC) LF EU transducer

Versatile, compact and coherent subwoofer

1400W class D, single channel amplifier

85-264Vac universal mains, all electronic protections

Fully programmable built-in DSP, 4 presets

Prepared for stacking and pole mount usage

Rugged and durable 18mm birch plywood construction

Powder coated custom perforated steel grille

Tech Specs

TYPE

Compact ACTIVE subwoofer

ENCLOSURE DESIGN

Reflex loaded

POWER OUTPUT (RMS)

700W (AES) 1400W (Program) 2800W (Peak)

FREQUENCY RANGE

32Hz - 250Hz

NOMINAL IMPEDANCE

N/A

TRANSDUCER TYPE

1x 15" LF (4in VC) EU transducer

CROSSOVER FREQUENCY

DSP controlled with 4 selectable presets 48KHz sampling frequency 24 bit AD/DA converter

MAX. SPL (PEAK)

130dB @ 1m

AMPLIFIER TYPE

Class D, single channel amplifier

AMPLIFIER OUTPUT

1400W (continuous)

INPUT

XLR/Jack combo connector

OUTPUT

XLR/M3p connector

INDICATORS

Power, signal/preset, clip

CONTROLS

Master level control, 4 selectable presets

FEATURE

Cooling by convection

AC POWER SUPPLY

Switching power supply, 85-264Vac

AC MAINS CONNECTOR

Neutrik® powerCON, Power-in (blue) / Power-out (grey)

PROTECTION

Over current, short circuit, thermal protection DC output protection and HF protection (amplifier)

CONSTRUCTION

15/18mm birch plywood, textured polyurea coating

GRILLE

Custom perforated metal grille with acoustic foam

INSTALLATION / RIGGING / FLYING

4 rubber feet, 2 side handles Ø35mm pole mount socket Prepared for stacking

DIMENSIONS (WXDXH)

590x590x440mm 23.23x23.23x17.32in

WEIGHT

38Kg 83.78lb
