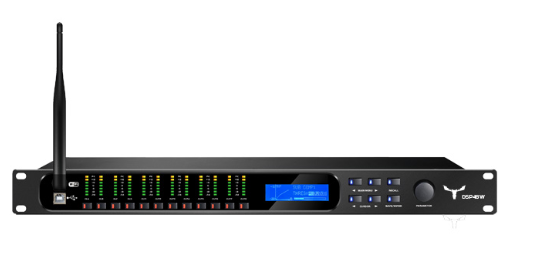

Moose DSP48 Digital Sound Processor 4in8out

Professional 4-input, 8-output system processor

All inputs and outputs XLR 3p balanced connectors

High-end 24-bit AD/DA, 96 kHz converters

Gain, Parametric EQ, Shelving Filters, Time Delay

Crossover (Butterworth, Linkwitz-Riley, Bessel), Compression, Limiting

USB port, TCP/IP, RS232, RS485 and GPIO for simple programming

Friendly and intuitive control interface

Convenient front-panel controls for parameter editing and input/output muting

30 user-defined internal presets storable

Switch mode power supply: 90V – 250V AC

Solid construction for 19” Rack - 1U lightweight enclosure

Tech Specs

TYPE

Professional audio system processor

INPUTS

4 (four)

OUTPUTS

8 (eight)

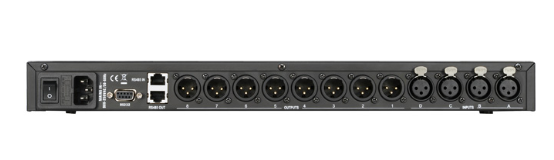

CONNECTORS

Input: XLR/F 3p balanced

Output

XLR/M 3p balanced OTHER

FEATURES

• | External: USB Type-B (USB1.1)
• Ethernet: TCP/IP, RS232, RS485 and GPIO in/out
• OTHER

FEATURES

• | Input impedance: 10kΩ
• Output Impedance: 50Ω
• OTHER

FEATURES

• | Max input/output level: 19dBu
• OTHER

FEATURES

• | Input/output Gain: -40~12dB, 0,1dB step
• Input/output Delay: 0ms~2s, step 21us
• OTHER

FEATURES

• | Input/output PEQ: 3-band parametric EQ (1 per channel)
• OTHER

FEATURES

• | EQ Gain: -30~15dB, step 0.1dB
• EQ Type: PEQ, Low shelf, High shelf
• EQ Frequency: 20Hz~20kHz
• EQ Banwith: PEQ 0.017~4.75 Oct
• OTHER

FEATURES

• | Crossover frequency: 20Hz~209kHz
• Crossover Slope: FLAT THRU, 6dB, 12dB, 18dB, 24dB, 36dB, 48dB
• Crossover classification: Butterworth, Bessel, Linkwitz-Riley
• Crossover Threshold: -20dB~+20dB, step 0.5dBu
• OTHER

FEATURES

• | Compressor ratio: 1.2,1.5, 2, 3, 4, 6, 10, 20, 40, 128:1
• OTHER

FEATURES

• | Attack time: 1~100ms,step 0.1ms
• Release time: 50~1000ms, step 50ms
• OTHER

FEATURES

• | Dynamic Range: 112dB A Weighting
• OTHER

FEATURES

• | CMMR: > 55dB (30Hz~20kHz)
• OTHER

FEATURES

• | Crosstalk: < -100dB
• OTHER

FEATURES

• | Distortion: 0.002% (1kHz, 0dBu)
• OTHER

FEATURES

• | System preset: 10 appearances preset, 23 user programs

CONTROLS

Mains switch (on/off), MUTE push buttons

CONNECTORS

IEC 3p

OPERATION VOLTAGE

90~250V AC SMPS, 50–60 Hz

DIMENSIONS (WXHXD)

1RU space, 275mm depth (10.86in)

WEIGHT

3.6Kg 7.94lb
