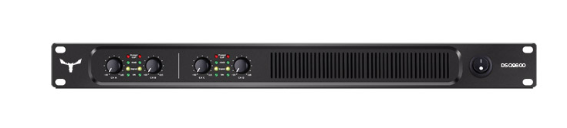

Moose DQ9600 4Channel Power Amplifier 4x2400W @4Ohm

High quality and reliable class D amplifier series

Classical PWM circuit design and new technology

4x 1300W @ 8ohm output power

4x 2400W @ 4ohm output power

XLR/F input connectors and Speakon 4p outputs

Modular design, no interference between channels

Front panel LEDs to monitor power, signal and clipping

Integrated protection circuitry to protect amplifier and speakers

Solid construction for 19” Rack - 1U lightweight enclosure

Tech Specs

TYPE

Professional class D power amplifier

NO. OF CHANNELS

4

RMS POWER @ 8Ω / 1KHZ / 0.1% THD

4x 1300W

RMS POWER @ 4Ω / 1KHZ / 0.1% THD

4x 2400W

FREQUENCY RANGE

20Hz - 20kHz, ±0.3dB

T.H.D. (20HZ - 20KHZ)

< 0,3%

DAMPING FACTOR

> 800 (8Ω, 20Hz~200Hz)

CROSSTALK (20HZ - 20KHZ)

> 75dB

SIGNAL-TO-NOISE RATIO

> 105dB

INPUT SENSITIVITY

20kΩ (balanced), 10kΩ (unbalanced)

CONTROLS

Mains switch (on/off), 4x volume

INDICATORS

Power on: Green

Signal

Green

Clip/Protect

Red (1 per channel)

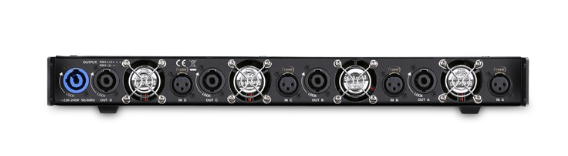

INPUTS

XLR/F 3p connectors

OUTPUTS

Speakon 4p connectors

CONNECTORS

PowerCON AC input

PROTECTIONS

Thermal overload, DC protection, short circuit, clip limiter, temperature control

OPERATION VOLTAGE

220~240V AC (factory configured), 50–60 Hz

POWER CONSUMPTION

2000VA

COOLING

Continuous speed fan, automatic

DIMENSIONS (WXHXD)

1RU space, 430mm depth (16.93in)

WEIGHT

10.5Kg 23.15lb
