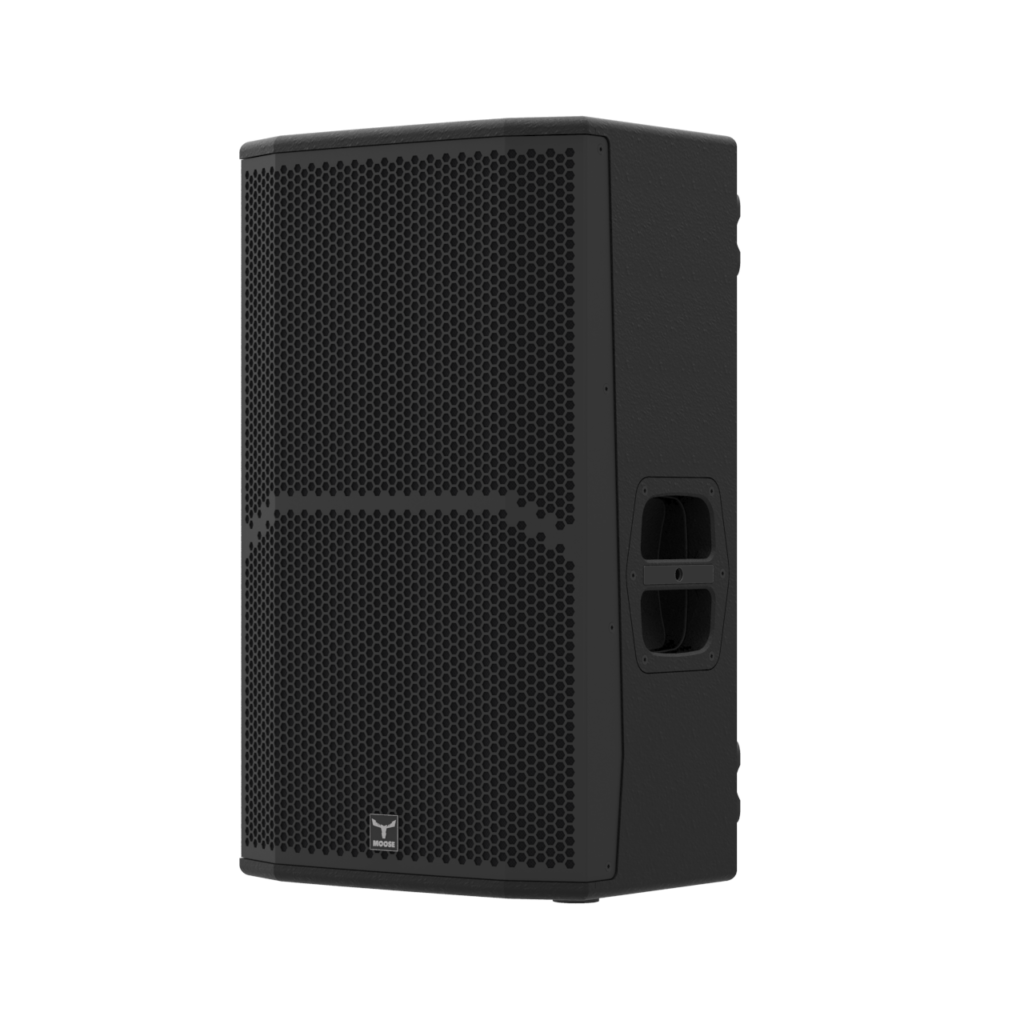

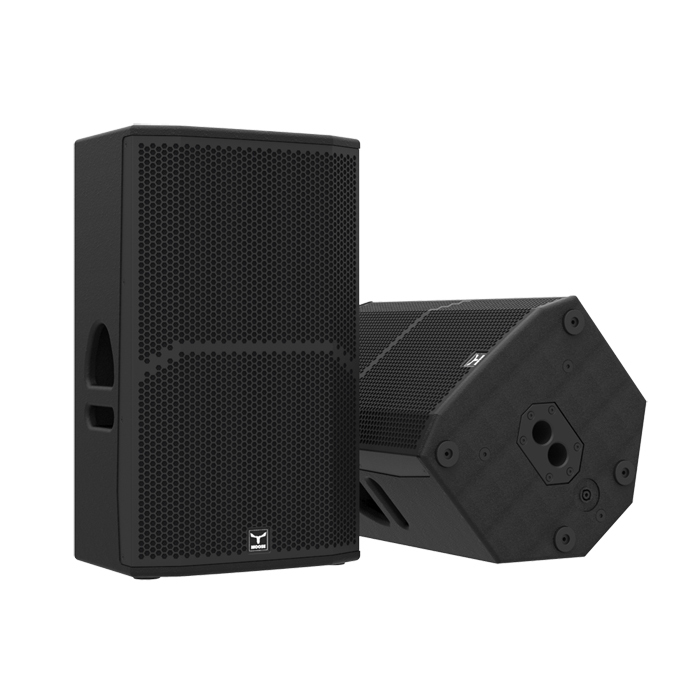

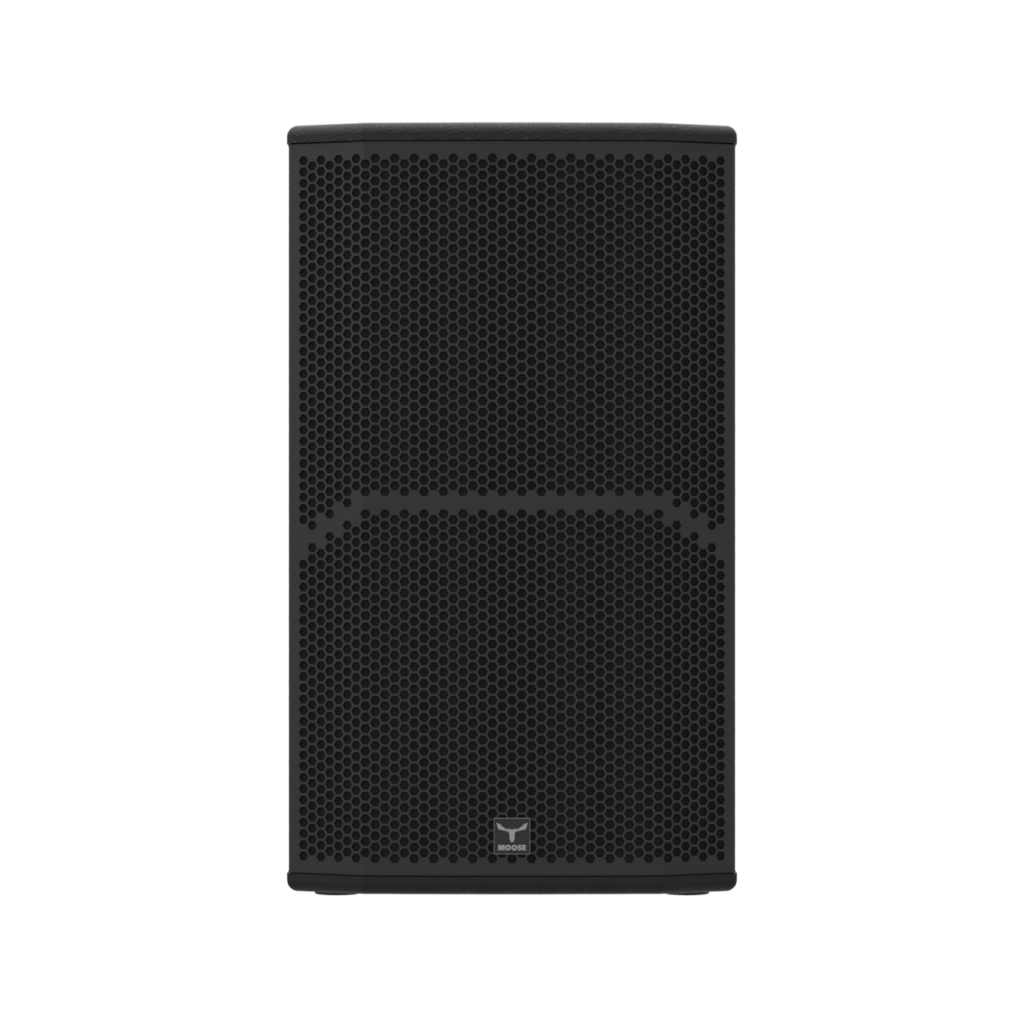

Moose DLP15 Passive Speaker 15"

Key Features

• 2-way multipurpose speaker
• 15” (3in VC) MB drivers with high power handling capabilities
• 1,4” (2.56in) Neodymiun high frequency driver
• User-rotatable CD horn 90°x60° for ideal dispersion
• Dual NL4 connectors in parallel + NL4MPR (for stage monitor)
• Elegant, refined and compact design
• Integrated rigging system, Ø35mm pole mount socket with 5° tilt
• Rugged and durable 15mm birch plywood
• Suited for FOH, High-end monitor, Frontfill systems
• Expandable with subs for a powerful front PA

Tech Specs

TYPE

2-Way passive multipurpose speaker

ENCLOSURE DESIGN

Bass reflex trapezoidal enclosure

POWER OUTPUT (RMS)

500W (RMS) 780W (Program) 2000W (Peak)

FREQUENCY RANGE

49Hz - 19kHz (+/-10dB)

NOMINAL IMPEDANCE

8Ohm

TRANSDUCER TYPE

15" MF (3in VC) EU transducer 1.4" Neodymium HF (2.56in VC) EU transducer

DISPERSION

CD horn, 90°x60° and 60°x90° User-rotatable

CROSSOVER FREQUENCY

1200Hz

MAX. SPL (PEAK)

133dB @ 1m

INPUT SENSITIVITY

97dB

CONNECTOR

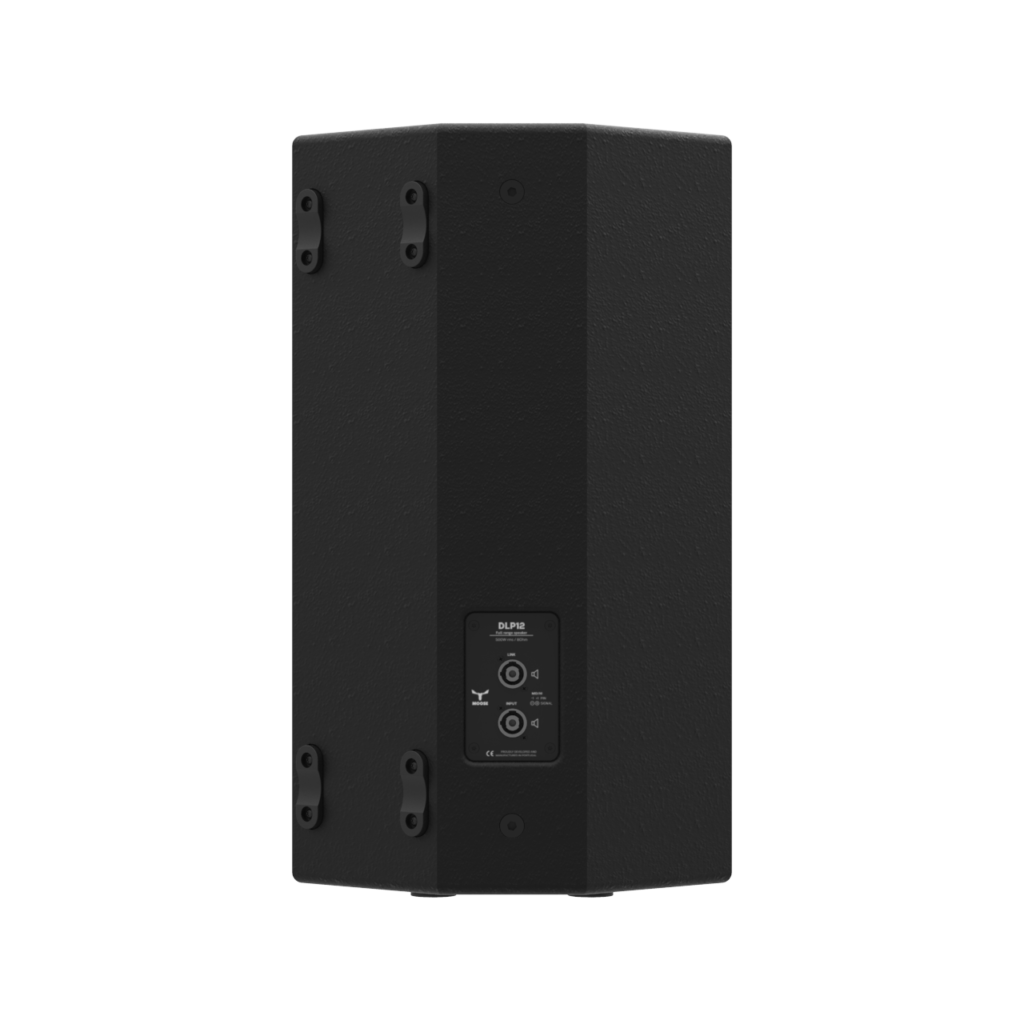

2x NL4 in parallel 1x NL4MPR for stage monitor

CONSTRUCTION

15mm brich plywood, textured polyurea coating

GRILLE

Custom perforated metal grille with acoustic foam

INSTALLATION / RIGGING / FLYING

Ø35mm pole mount with 5° tilt 5x M8 flying points

DIMENSIONS (WXDXH)

440x390x710mm 17.32x15.35x27.95in

WEIGHT

31Kg 68.34lb
