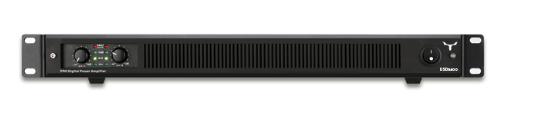

Moose DD3400 2Channel Power Amplifier 2x1700W @4Ohm

High quality and reliable class D amplifier series

Classical PWM circuit design and new technology

2x 1700W @ 4ohm output power

2x 2400W @ 2ohm output power

Parallel XLR/M and XLR/F connectors for simple loop-through connectivity

Modular design, no interference between channels

Front panel LEDs to monitor power, signal and clipping

Integrated protection circuitry to protect amplifier and speakers

Solid construction for 19” Rack - 1U lightweight enclosure

Tech Specs

TYPE

Professional class D power amplifier

NO. OF CHANNELS

2

RMS POWER @ 8Ω / 1KHZ / 0.1% THD

2x 1300W

RMS POWER @ 4Ω / 1KHZ / 0.1% THD

2x 2400W

FREQUENCY RANGE

20Hz - 20kHz, ±0.3dB

T.H.D. (20HZ - 20KHZ)

< 0,3%

DAMPING FACTOR

> 800 (8Ω, 20Hz~200Hz)

CROSSTALK (20HZ - 20KHZ)

> 75dB

SIGNAL-TO-NOISE RATIO

> 105dB

INPUT SENSITIVITY

20kΩ (balanced), 10kΩ (unbalanced)

CONTROLS

Mains switch (on/off), 4x volume

INDICATORS

Power on: Green

Signal

Green

Clip/Protect

Red (1 per channel)

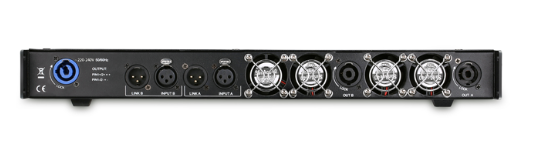

INPUTS

XLR/F 3p connectors

OUTPUTS

XLR/M 3p connectors Speakon 4p connectors

CONNECTORS

PowerCON AC input

PROTECTIONS

Thermal overload, DC protection, short circuit, clip limiter, temperature control

OPERATION VOLTAGE

220~240V AC (factory configured), 50–60 Hz

POWER CONSUMPTION

2000VA

COOLING

Continuous speed fan, automatic

DIMENSIONS (WXHXD)

1RU space, 375mm depth (14.76in)

WEIGHT

8.0Kg 17.64lb
