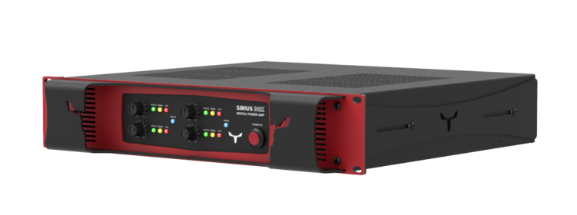

Moose D8K 4Channel Power Amplifier 4x2000W @4Ohm

Professional and powerful class D amp

High dynamic range and low distortion

4x 2000W / 4ohm high power channels

2x 3000W / 8ohm BRIDGE (BTL)

Status LEDs in front panel

Electronically balanced XLR inputs, Speakon outputs

Efficient forced-air cooling system

Fully self-protected for SMPS and channels

AC 100V - 240V, 50/60Hz Universal mains

Solid construction for 19” - 2U rack mount

Tech Specs

TYPE

Class D amplifier, Powersoft modules

NO. OF CHANNELS

4

RMS POWER @ BRIDGE 8Ω

2x 3000W - BTL

RMS POWER @ 4Ω / 1KHZ / 0.1% THD

4x 2000W

GAIN

38dB (x80 voltage gain)

SIGNAL-TO-NOISE RATIO

112dB (A weighted)

T.H.D. (20HZ - 20KHZ)

< 0,05% from 0.1W to full power OTHER

FEATURES

• | Output voltage: 135peak
• Output current: 52Apeak

FREQUENCY RANGE

20Hz - 20kHz (±3dB) @ 1W, 8ohm

DAMPING FACTOR

> 500 @ 100Hz

INPUTS

4x XLR/F 3p

OUTPUTS

4x XLR/M 3p - LINK 4x Speakon NL4 2x Speakon NL4 red - Bridge

INDICATORS

Status, Clip, Protect, Bridge

COOLING

Fan, variable speed, temperature controlled

PROTECTIONS

Extensive protection circuitry: power limiters, thermmal shutdown Short circuit, overload and clip limiter Temperature protection of transformer & heat-sinks

POWER CONSUMPTION

Regulated SMPS with PFC

OPERATION VOLTAGE

AC 100V - 240V, 50/60Hz

CONNECTORS

Neutrik powerCON in OTHER

FEATURES

• | Rugged and solid steel construction, AL front panel
• OTHER

FEATURES

• | Electrostatic black powder coating

DIMENSIONS (WXHXD)

2RU - Rack 19" 410mm depth

WEIGHT

18Kg 39.68lb
