Moose D6K4 4Channel Power Amplifier 4x1600W @4Ohm

Key Features

• Professional and powerful class D amp
• High dynamic range and low distortion
• 4x 1600W / 4ohm high power channels
• 2x 3200W / 8ohm BRIDGE
• Status LEDs in front panel
• Electronically balanced XLR inputs, Speakon outputs
• Efficient forced-air cooling system
• Fully self-protected for SMPS and channels
• AC 100V - 240V, 50/60Hz Universal mains
• Solid construction for 19” - 2U rack mount

TYPE

Class D amplifier, Powersoft modules

NO. OF CHANNELS

4

RMS POWER @ 8Ω / 1KHZ / 0.1% THD

2x 3200W - BRIDGE

RMS POWER @ 4Ω / 1KHZ / 0.1% THD

4x 1600W

GAIN

32dB (x80 voltage gain)

SIGNAL-TO-NOISE RATIO

115dB (A weighted)

T.H.D. (20HZ - 20KHZ)

< 0,05% from 0.1W to full power OTHER

FEATURES

• | Output voltage: 150peak
• Output current: 54Apeak

FREQUENCY RANGE

10Hz - 25kHz (±3dB) @ 1W, 4ohm

DAMPING FACTOR

> 1000 @ 100Hz

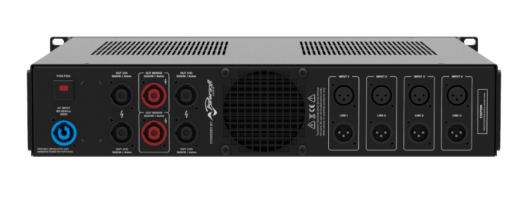

INPUTS

4x XLR/F 3p

OUTPUTS

4x XLR/M 3p - LINK 4x Speakon NL4 2x Speakon NL4 red - Bridge

INDICATORS

Status, Clip, Protect, Bridge

COOLING

Fan, variable speed, temperature controlled

PROTECTIONS

Extensive protection circuitry: power limiters, thermmal shutdown Short circuit, overload and clip limiter Temperature protection of transformer & heat-sinks

POWER CONSUMPTION

Regulated SMPS with PFC

OPERATION VOLTAGE

AC 100V - 240V, 50/60Hz

CONNECTORS

Neutrik powerCON in OTHER

FEATURES

• | Rugged and solid steel construction, AL front panel
• OTHER

FEATURES

• | Electrostatic black powder coating

DIMENSIONS (WXHXD)

2RU - Rack 19" 320mm depth

WEIGHT

11Kg 24.25lb
