Moose D4K 2 Channel Power Amplifier 2x2000W @4Ohm

Professional and powerful class D amp

High dynamic range and low distortion

2x 1600W / 4ohm high power channels

1x 3200W / 8ohm BRIDGE

Status LEDs in front panel

Electronically balanced XLR inputs, Speakon outputs

Efficient forced-air cooling system

Fully self-protected for SMPS and channels

AC 90V - 264V, 50/60Hz Universal mains

Solid construction for 19” - 2U rack mount

Tech Specs

TYPE

Class D amplifier, Powersoft modules

NO. OF CHANNELS

2

RMS POWER @ 8Ω / 1KHZ / 0.1% THD

3200W - BRIDGE

RMS POWER @ 4Ω / 1KHZ / 0.1% THD

2x 1600W

GAIN

32dB (x40 voltage gain)

SIGNAL-TO-NOISE RATIO

115dB (A weighted)

T.H.D. (20HZ - 20KHZ)

< 0,09% from 0.1W to half power OTHER

FEATURES

• | Output voltage: 150Vpeak
• Output current: 54Apeak

CROSSTALK (20HZ - 20KHZ)

-71 dB @ 1 kHz (4ohm)

FREQUENCY RANGE

20Hz - 20kHz (±3dB) @ 1W, 8ohm

DAMPING FACTOR

> 500 @ 100Hz OTHER

FEATURES

• | Input Impedance, 10kohm balanced

INPUT SENSITIVITY

2.7 V / +10.8 dBu @ 32 dB gain

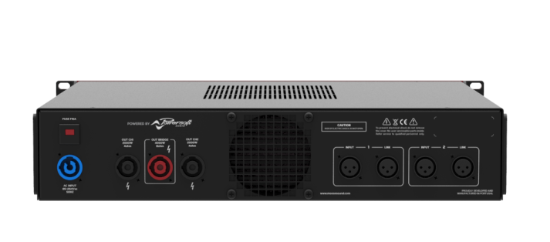

INPUTS

Neutrik XLR/F 3p, input/thru

OUTPUTS

Neutrik NL4 speakon Neutrik NL4 red - Bridge

INDICATORS

Status, Clip, Protect, Bridge

COOLING

Fan, variable speed, temperature controlled

PROTECTIONS

Extensive protection circuitry: power limiters, thermmal shutdown Short circuit, overload and clip limiter Temperature protection of transformer & heat-sinks

POWER CONSUMPTION

Regulated SMPS with PFC 600VA (rated load, 1/8 max. power @ 8ohm)

OPERATION VOLTAGE

90 - 264V DC, 50/60Hz

CONNECTORS

Neutrik powerCON in OTHER

FEATURES

• | Rugged and solid steel construction
• AL front panel
• OTHER

FEATURES

• | Electrostatic black powder coating

DIMENSIONS (WXHXD)

2RU - Rack 19" 410mm depth

WEIGHT

9Kg 19.84lb
