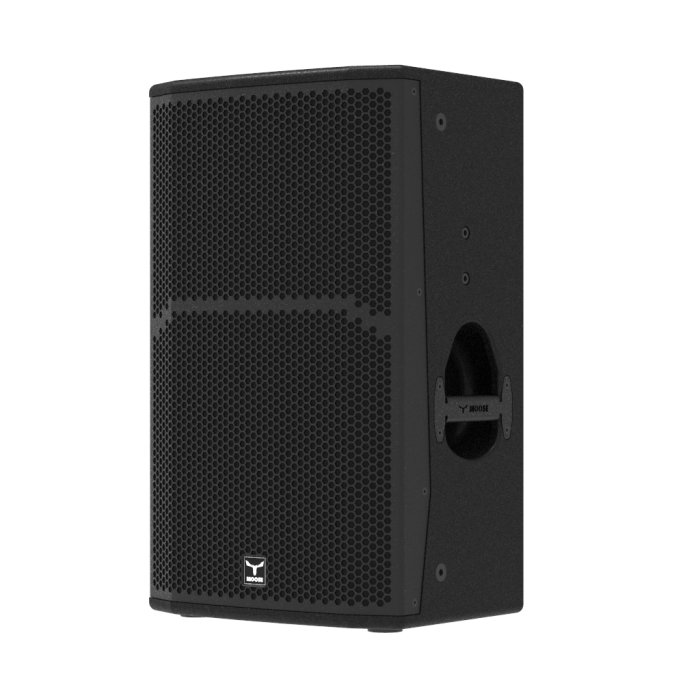

Moose C15A Aktif Hoparlör 15"

Multipurpose 2-way active speaker

Bass reflex trapezoidal enclosure

15" (2.5in VC) MF + 1" (1.73in VC) HF European transducers

User-rotatable CD horn 90°x60° for ideal dispersion

Driven by a Class D, 2 channel amplifier

Fully programmable DSP, 4 selectable presets

Universal mains 85-264Vac

Built-in Electronic protections for safe operation

Integrated rigging system with 3x M10 inserts

Rugged and durable 15mm birch plywood

Tech Specs

TYPE

2-Way active speaker

ENCLOSURE DESIGN

Bass reflex trapezoidal enclosure

POWER OUTPUT (RMS)

410W (RMS) 560W (Program) 1100W (Peak)

FREQUENCY RANGE

50Hz - 18kHz

TRANSDUCER TYPE

15" MF (2.5in VC) EU transducer 1" HF (1.73in VC) EU transducer

DISPERSION

CD horn, 90°x60° and 60°x90° User-rotatable

CROSSOVER FREQUENCY

DSP controlled with selectable presets 48KHz sampling frequency 24 bit AD/DA converter

MAX. SPL (PEAK)

129dB @ 1m

AMPLIFIER TYPE

Class D, 2 channel amplifier

AMPLIFIER OUTPUT

800W + 400W (continuous) 1500W (peak)

INPUT

XLR/jack combo connector

OUTPUT

XLR/M 3p

INDICATORS

Power, signal/preset, clip

CONTROLS

Master level control, 4 selectable presets

FEATURE

Cooling by convection

AC POWER SUPPLY

Switching power supply, 85-264Vac

AC MAINS CONNECTOR

Neutrik® powerCON, Power-in (blue) / Power-out (grey)

PROTECTION

Over current and short circuit protection, thermal protection, DC output protection and HF protection (amplifier)

CONSTRUCTION

15mm birch plywood, textured polyurea coating

GRILLE

Custom perforated metal grille with acoustic foam

INSTALLATION / RIGGING / FLYING

Ø35mm pole mount socket 3x M10 flying points "U" bracket for horizontal and vertical installation

DIMENSIONS (WXDXH)

430x420x690mm 16.93x16.54x27.17in

WEIGHT

25Kg 55.16lb
