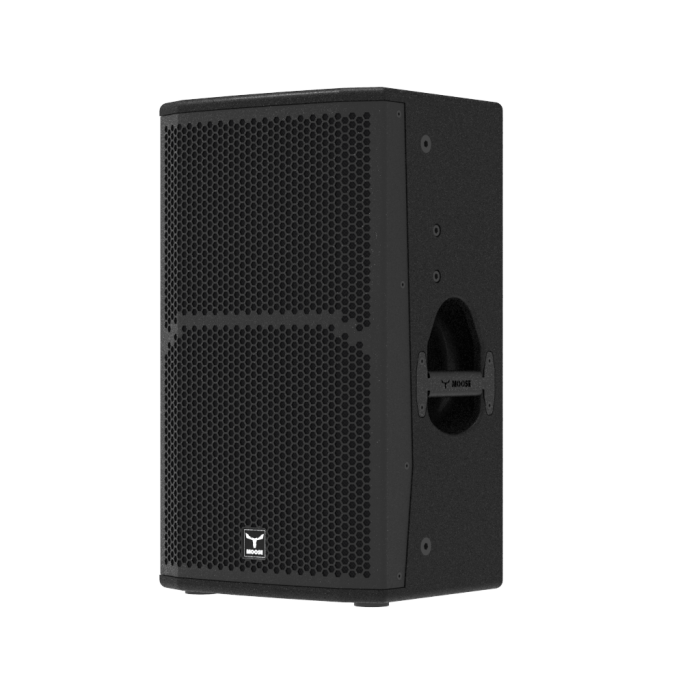

Moose C12 Pasif Hoparlör 12"

Multipurpose 2-way passive speaker

Bass reflex trapezoidal enclosure

12" (2.5in VC) MF + 1" HF (1.73in VC) EU transducers

2x NL4 connected in parallel

User-rotatable CD horn 90°x60° for ideal dispersion

Ø35mm pole mount with 0° and 5° tilt

Integrated rigging system with 3x M10 inserts

Rugged and durable 15mm birch plywood

Powder coated custom perforated steel grille

Tech Specs

TYPE

2-Way passive loudspeaker

ENCLOSURE DESIGN

Bass reflex trapezoidal

POWER OUTPUT (RMS)

360W (EMS) 720W (Program) 1400W (Peak)

FREQUENCY RANGE

65Hz - 18kHz

NOMINAL IMPEDANCE

8Ohm

TRANSDUCER TYPE

12" MF (2.5in VC) EU transducer 1" HF (1.73in VC) EU transducer

DISPERSION

CD horn, 90°x60° and 60°x90° User-rotatable

CROSSOVER FREQUENCY

2000Hz

MAX. SPL (PEAK)

127dB @ 1m

INPUT SENSITIVITY

94dB

CONNECTOR

2x NL4 in parallel

CONSTRUCTION

15mm birch plywood, textured polyurea coating

GRILLE

Custom perforated metal grille with acoustic foam

INSTALLATION / RIGGING / FLYING

Ø35mm pole mount with 0° and 5° tilt 3x M10 flying points "U" bracket for horizontal and vertical installation

DIMENSIONS (WXDXH)

360x350x600mm 14.17x13.78x23.6mm

WEIGHT

20Kg 44.09lb
