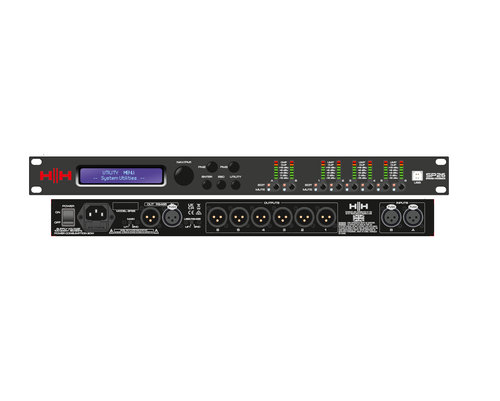

HH Audio - SP26 Loudspeaker Processor 2 in 6 out

Yüksek performanslı 2 giriş 6 çıkışlı processor Yüksek dinamik aralık Uygun ön panel kontrolleri veya uzaktan çalıştırma Üniversal şebeke gerilimi çalışması

Audio

Inputs

Two Electronically Balanced XLR Inputs

Outputs

Six Electronically Balanced XLR Inputs

Minimum Load

150 Ohms

THD%N

0.001% at 1kHz 0dBu

S/N

>106dBA

Frequency Response

20Hz-20kHz; -0.5dBy at 20Hz and 20kHz

AD/DA Converters

24bit, 48kHz

General

Presets

48 user presets (16 pre-loaded TNA examples, may be erased)

Other

Audio Ground Lift switch, USB/RS485 ground lift switch

Remote

RS485 in/out XLR connectors for remote monitoring

DSP

DSP Engine

DSP, 24bit (data) x 96 bit (coeff.)

DSP Resolution

24bit (data) x 24 bit (coeff.), 54 bit accregisters. 96 bit precision on intermediate processing data

Parametric Equalisation

11 filters per input,7 filters per output

Filter Type

Bell, Shelving

Filter Gain

From -12dBu up to +12dBu by 0.5dBu resolution steps

Centre Frequency

from 20Hz up to 20kHz with 1Hz resolution steps

Filter Q/BW

Q from 0.4 up to 128

Input Gain

From -12dB to +12dB by 0.1dBu resolution steps

Output Gain

From -18dB to +12dB by 0.1dBu resolution steps

Crossover Section

HPF/LPF Butterworth 6/12/18/24/36/48 dB per octave. Bessel 12/24 dB per octave. Linkwitz-Riley 12/24/36/48 dB per octave

Internal Noise Generator

White/ Pink Noise; Level from -30dBu to 0dBu

Input Noise Gate

Threshold from -90dBu up to -60dBu. Attack time from 1ms up to 1000ms;Release time from 10ms up to 1000ms

Input RMS Compressor

Threshold from -14dBu up to +16dBu and Bypass. Ratio 2:1~100:1

Knee

0% ~ 100%. Attack time from 5ms up to 200ms;Release time from 0.1 secup to 3 sec

Output RMS Compressor

Threshold from -14dBu up to +16dBu and Bypass. Ration 2:1~100:1

Knee

0% ~ 100%. Attack time from 5ms up to 200ms;Release time from 0.1sec up to 3 sec

Output Peak Limiter

Threshold from -14dBu up to +16dBu and Bypass. Attack time from 5ms up to 200ms;Release time from 0.1 sec up to 3 sec.DLFInput: Boost Filter from 0% to 100%;Frequency from 20Hz to 20kHz. Output(Only for output 1,3,5): Attenuation Filter from 0dBu to -6dBu;Frequency. 20Hz to 1kHz Q from 1 to 9.9 step 0.1

Delay

900 ms 10.4us increment/decrement steps per input channel. 340 ms 10.4us increment/decrement steps per output channel

Residual Noise

<-90dBu

Power Requirements

AC Power

Universal voltage 100V-240V~ 50/60Hz, three pin IEC socket

AC Power Consumption

<30W

Sizes

Unit dimensions (HWD)

44 x 483 x 229mm, 1.7" x 19" x 9"

Unit weight

3.5Kg, 7.7 lbs

Carton dimensions (HWD)

9 x 53 x 30CM, 3.5" x 20.9" x 11.8", 0.014 M3

Packed weight

4.5Kg, 9.9 lbs

EAN

5060109457957
