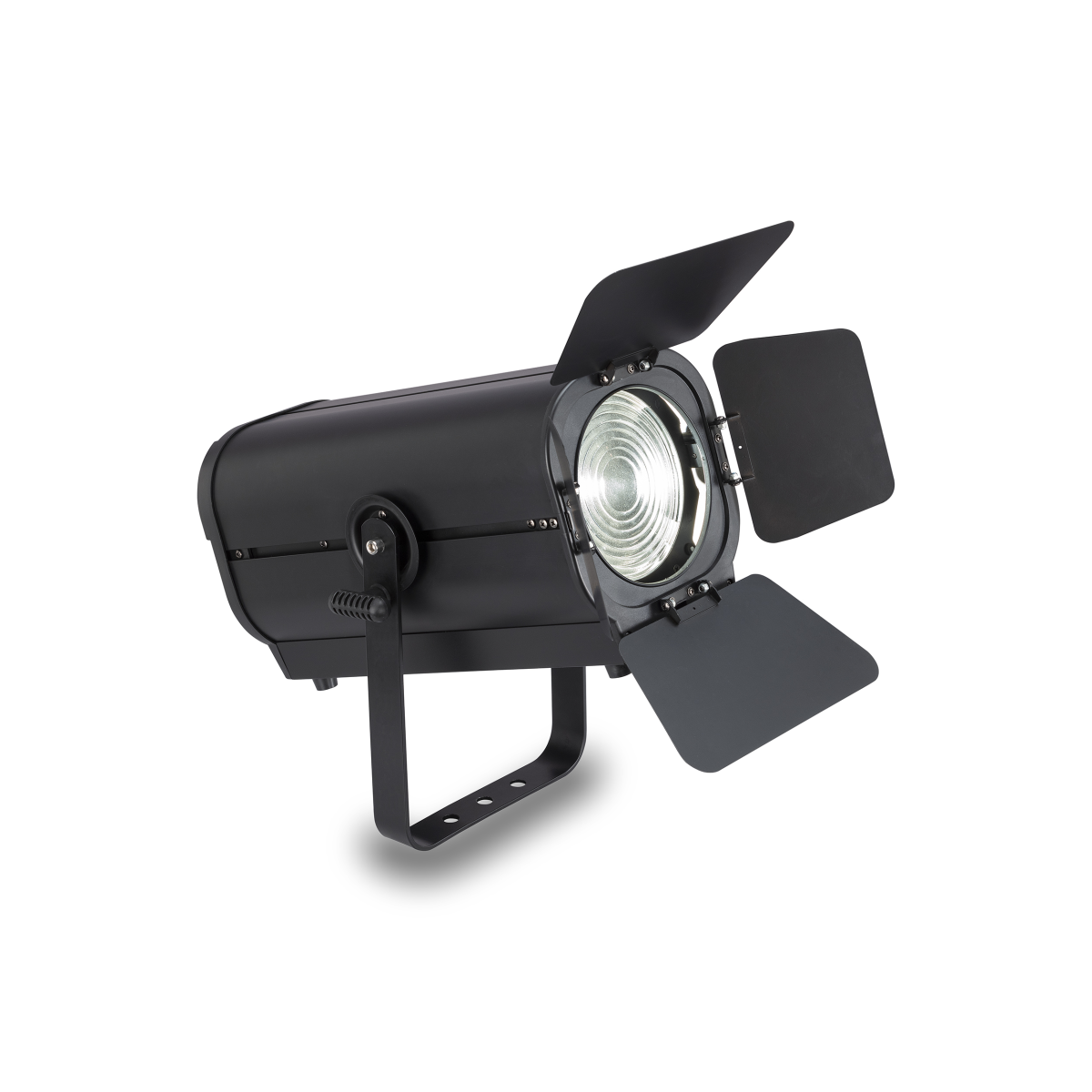

Centolight PLOT 200FZ 200 W COB LED motorlu zoomlu Fresnel ışık

PLOT 200FZ: 200 W COB LED motorlu zoomlu Fresnel ışık.

Teknik veriler

Işın açısı

15°-50°.

• Light Source: 1x200W Warm-White COB LED
• Zoom: Motorized from 15° to 50° (DMX or Manually Controlled)
• Chip Life: Over 50,000h
• Fresnel Lens: Ø130mm (5.1in)
• CCT (Color Temperature): 3100±150K
• Luminous Flux: 2430 (15°) / 832 (50°) lux @ 5m, 585 (15°) / 218 (50°) lux @ 10m
• CRI: Ra≥90
• Flicker-Free: LED frequency over 15.000Hz
• Işın açısı: 15°-50°
• Lens Material: High-Quality Glass Fresnel Lens
• Dimmer: 16-Bit Smooth Linear Dimming
• Strobe effect: Yes

Cooling System

Quite Fan (under 25dB @1m) + Copper Tube

DMX Channel Modes

2/3 Channels (RDM Included)

Control Modes

DMX, Strobo, Master-Slave, Manual Dimming

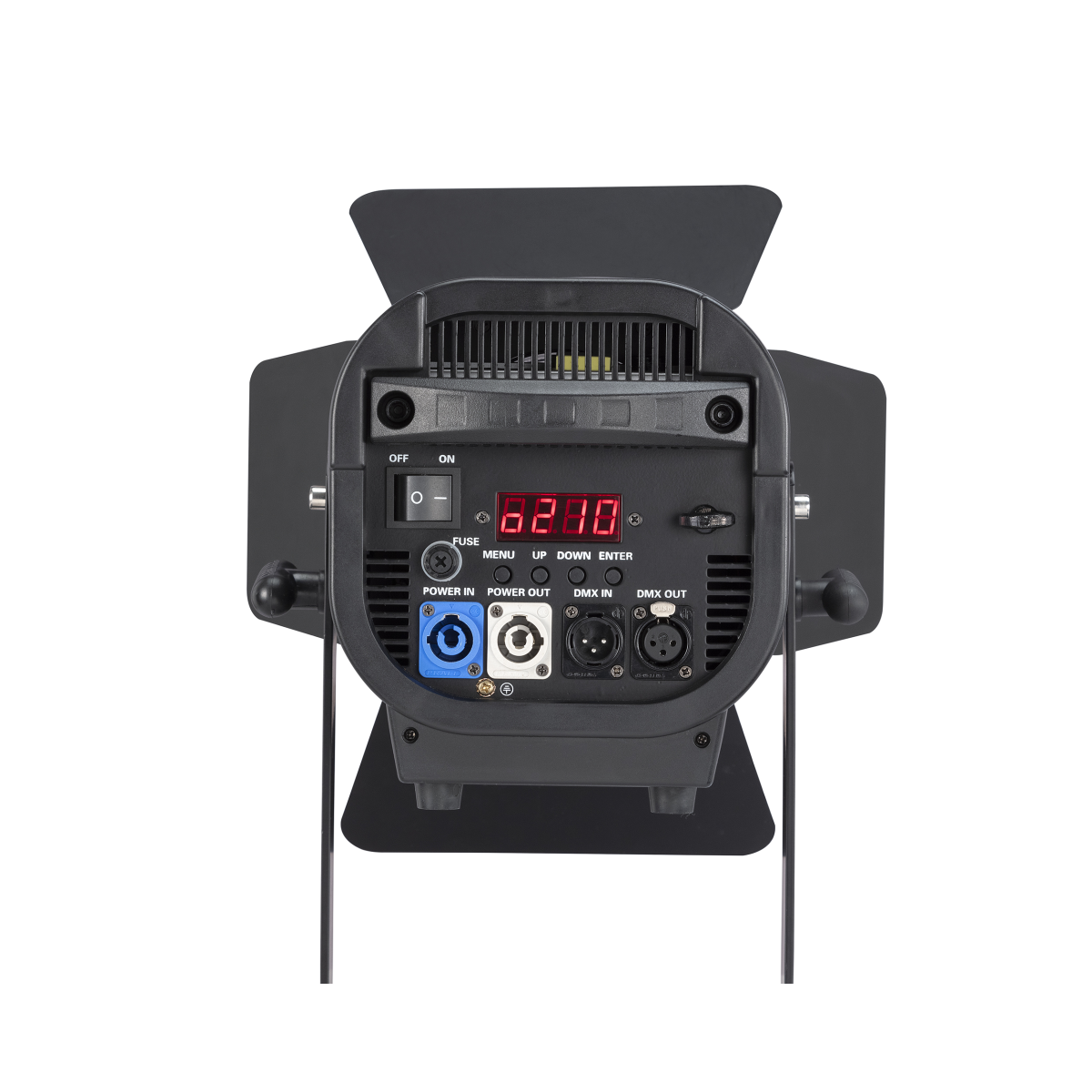

Control Panel

4 Buttons and LED Display

IP rate

IP20

DMX In/Out

3-pin XLR

Power Socket

Powercon In/Out

Fuse

F5AL/250V (5x20mm)

Max Power Consumption

220W

Çalışma sıcaklığı

-30÷55 °C (-22÷171 °F)

Barndoor

Rotatable Barndoor (Included)

Fixture Size (WxDxH)

400x187x220 mm – 17.75x7.36x8.66 in (only fixture, without barndoor and C-Bracket)

Net Weight

6,6kg – 14.55 lbs.

Packing Size (WxDxH)

540x280x280 mm – 21.26x11.02x11.02 in

Packing Weight

7,6kg – 16.75 lbs.
